33. Fuel Density Meter FD-5100 (NEW)

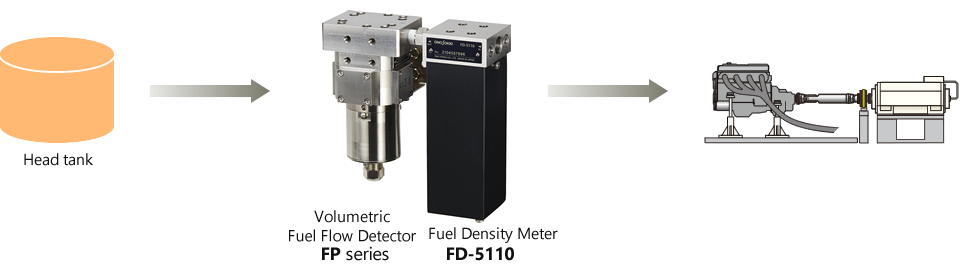

Achieves high accurate mass flow measurement with a new fuel density meter and volumetric flow detector

Improving the energy efficiency of an engine is now an important issue to tackle. The FD-5100 Fuel Density Meter providing real-time measurement and the FP series Volumetric Flow meters with wide rangeability are the best choice for achieving the accurate mass flow measurement.

More details

Features

1.LOW PRESSURE LOSS

With the use of the FP series volumetric flow detector, the pressure loss of 20 kPa or less (at 60 L/h) is achieved. The detector can be installed with the minimum pressure fluctuations of the flow path.

------

------

2.COMPACT AND LIGHT WEIGHT SYSTEM

Compact and space-saving design. (50 % size reduction compared to the existing model.)

------

------

3.APPLICABLE TO VARIOUS VOLUMETRIC FLOW DETECTORS

Achieve various mass flow measurements selecting a volumetric flow detector from small to large flow.

-----

-----

4.MAKES THE PROCEDURES IN MODE AND PERFORMANCE TESTS SIMPLE

Depending on the area and installation location, various factors such as fuel type and density are varied. Ono Sokki's mass flow measurement system does not require the troublesome density data input etc. with real-time measurement density measurement and mass conversion

-----

-----

Specifications

Usable fluid Gasoline, light oil, kerosene, general petroleum-based hydraulic oil and alcohol fuels
Measurement range 0.5000 to 2.0000 g/cm3
Uncertainty 0.0010 g/cm3
Temperature accuracy ±0.1 °C
Operating temperature range ＋10 to ＋65 °C (liquid temperature),
－10 to ＋50 °C (ambient temperature)
Dimension 60×60×176 mm
Weight Approx. 1.5 kg
Power DC 5 V 60 mA (supplied by FM-3100)
Conforming standard EMC Directive 2014/30/EU Standard EN61326-1 ClassA Group1
RoHS Directive 2011/65/EU Standard EN50581

------
